Product Service

Semiconductor

Especially in the semiconductor industry, high-purity crystals have long played a vital role. As the basis for separating devices (e.g., transistors and diodes), microelectronics (e.g., memories and ICs), and microsystem components (e.g., sensors and converters), the purity of the crystal and its lattice structure must reach the highest standards.

We provide the following products:

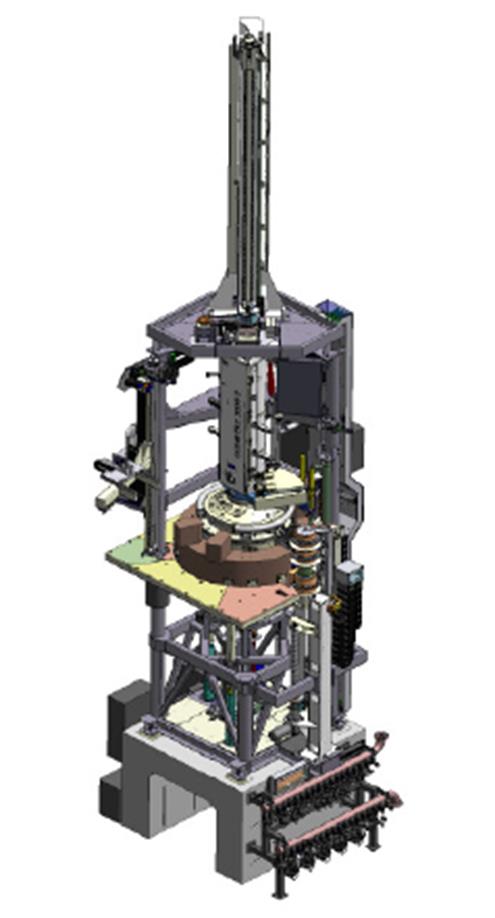

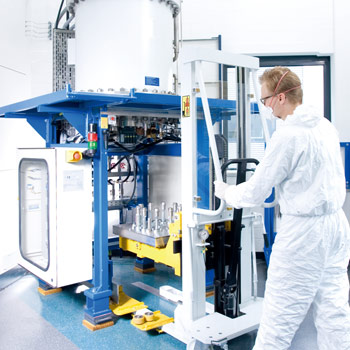

Czochralski Method

CGS was a spin off from Leybold-Heraeus Systems, focusing on the construction of crystal growing systems for the semiconductor industry. One of the methods that we use to grow crystalline ingot in the solar industry is called Czochalski method(CZ). In the CZ process, high-purity, polycrystalline silicon is put into the quartz crucible of a monocrystal growing system. Next, the process room is evacuated and the silicon is then melted down in an argon controlled atmosphere via resistive heating. After temperature stabilization of the melt (aprrox. 1420°C), a rotating monocrystalline seed crystal is dipped into the melt. As the result of a slight temperature decrease, crystallization of silicon material on the seed crystal is now initiated. As the seed is slowly pulled upwards, a cylindrical silicon moncrystal hanging on the seed crystal is then formed. The pulling speed and the temperature are regulated in such a way that a silicon moncrystal whose orientation and structure corresponds to the seed crystal can be grown with a constant diameter. Nowadays more and more companies start to use CZ method to grow mono ingot. Even though the process is quite complex and the cost of ownership is quite high, the conversion efficiency is much higher than the multi ingot. Also, the maturity of technology and the cell stability make the mono ingot become more competitive in the solar industry.

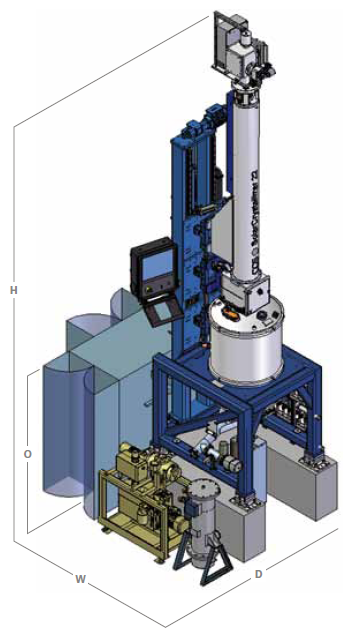

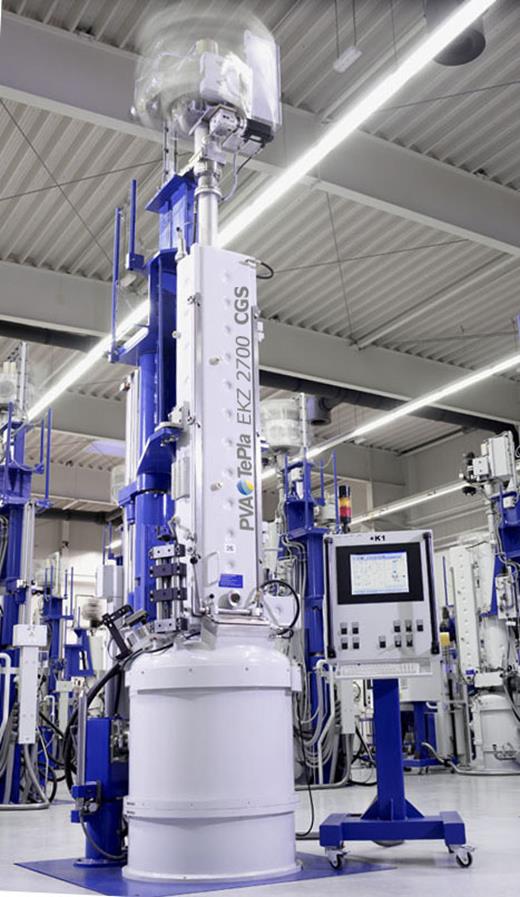

The diesel-type single crystal furnace we produce is developed for mass production needs, and the maximum diameter of the single crystal rods produced can reach 230mm.
Technical data

  1. Crucible diameter: up to 559 mm (22")

  2. Crystal diameter: up to 230 mm

  3. Crystal length: up to 2.8 m

  4.Charge size: up to 180 kg

  5. Vessel diameter: approx. 934 mm

  6. Vessel height: approx. 1,520 mm

  7. Gate valve diameter: 304 mm

  8. Receiving chamber: tube

  9. Weight (Puller): approx. 8,500 kg

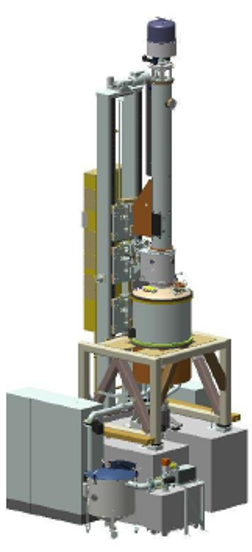

Technical data

  1. Height total incl. foundation:   approx. 11,500 mm

  2. Footprint:   approx. 15m²

  3. Weight (Puller):   approx. 12,000 kg

  4. Crucible size:   up to 32"

  5. Crystal length:   up to 2,500 mm

  6. Crucible charge size:   up to 450 kg

  7. Vessel height:   approx. 2,100 mm

  8. Inner diam. receiving chamber:   450 mm

  9. Receiving chamber length:   up to 3500mm

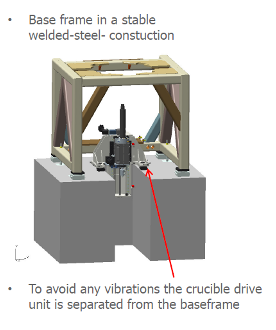

The base frame adopts a stable welded steel structure. To avoid vibration, the crucible drive unit is separated from the base frame.

SC 32 target application: semi-superconducting magnet, prototype in 2020.

Technical Parameters

 1. Chamber diameter 1.250 mm, crucible diameter up to 32"

  2. Charge capacity up to 500 kg (incl. charging)

  3. Gate chamber usable length 3.500 mm, throat diameter 450 mm

  4. Magnet preparation ID 1.600 mm * OD 2.400 mm, magnet lift system capacity 16 tons

  5. Puller heigth 9.400 mm, footprint 3.400 mm * 3.800 mm

  6. Cable head 500 kg capacity incl. load cell

  7. Crucible drive with bellows, ferrufluidic seal and independent pedestal

  8. DC switching power supply main heater 150 kW, bottom heater 50 kW

This crystal growth furnace is mainly designed to grow silicon crystals, and can also be used for germanium crystal growth.
Technical data

  1. crucible diameter: up to 485mm(18")

  2. crystal diameter: up to 300mm

  3. crystal length: up to 2.5 m

  4. filler amount: up to 220 kg

  5. Vessel diameter: approx. 880 mm

  6. Vessel height: approx. 1470 mm

  7. Gate valve diameter: 360 mm

  8. Receiving chamber: open-door

  9. weight: 1000 kg

This system is a semiconductor crystal growth furnace, and this equipment can add an external magnetic field device system according to product requirements.
Technical data

  1. crucible diameter: up to 610mm(24")

  2. crystal diameter: up to 300mm

  3. crystal length: up to 2.7 m

  4. filler amount: up to 210 kg

  5. Vessel diameter: approx. 940 mm

  6. Vessel height: approx. 1680 mm

  7. Gate valve diameter: 304 mm

  8. Receiving chamber: open door

  9. weight: 12,800 kg

CGS-Lab is a laboratory grade crystal growth furnace designed to grow crystals with a diameter of 100mm and a length of 300mm.
Technical data

  1. crucible diameter: 254 mm (10")

  2. crystal size: 100 mm (4")

  3. crystal length: 300 mm

  4. filler amount: 5.0 kg

  5. vessel size: approx. 590 mm (23")

  6. vessel length: approx. 1000 mm

  7. weight(vessel only): approx. 2500 kg

This system is a crystal growth furnace specially designed for growing crystals with larger diameters.
Technical Parameters
1. Crucible diameter: up to 915mm (about 36 inches)
2. Crystal diameter: up to 450mm
3. Crystal length: up to 2.1 m
4. Filling amount: up to 450 kg
5. The diameter of the furnace chamber: about 1250 mm
6. Furnace height: about 2200 mm
7. Gate valve diameter: 500 mm
8. Receiving chamber: door open
9. Weight: 27000 kg

Float Zone



Since the emergence of Float Zone technology in the late 1950s, Haldor Topsoe has been actively engaged in the research and production of Float Zone wafers. During the development process, many special equipments for Float Zone wafer production were developed. In 2004, the equipment division of Haldor Topsoe was acquired by the PVA TePla Group of Companies and is now merged into Crystal Growing Systems, CGS. Float Zone gets its name from its special growth method. Firstly, the high-density Poly Rod produced by a special process from the Siemens CVD furnace is fixed in the Float Zone crystal growth equipment, and then the Poly Rod is heated to the conductor state by indirect heating, and then the induction coil takes over the heating to make the Poly Rod partially Melt, and then prepare a single crystal seed crystal at the bottom.When the silicon soup touches the single crystal seed crystal, it will begin to crystallize. At the same time, the single crystal seed crystal will rotate downward so that there is enough space for the silicon soup. Condensed into a single crystal rod. The biggest difference between the Float Zone and the CZ method is that no crucible is needed in the process, and there is no graphite element in the thermal field, so the crystal oxygen content and carbon content can be minimized, and it is suitable for semiconductor high- power components.The biggest difference between the Float Zone and the CZ method is that no crucible is needed in the process, and there is no graphite element in the thermal field, so the crystal oxygen content and carbon content can be minimized, and it is suitable for semiconductor high-power components.The biggest difference between the Float Zone and the CZ method is that no crucible is needed in the process, and there is no graphite element in the thermal field, so the crystal oxygen content and carbon content can be minimized, and it is suitable for semiconductor high-power components.

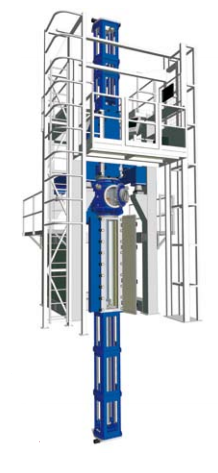

FZ-30 and FZ-35 are the largest zone-melting crystal growth furnaces for PVA TePla at present. The ingot diameter can reach 8 inches and the height can reach 2000mm. Its design makes the center of gravity of the machine just in the melting zone. In order to prevent external vibration, FZ-30 and FZ-35 are also equipped with an automatic adjustment system and a protection system. In addition, the main reaction chamber can also be equipped with a gas doping device.

Technical data

  1. Max. Crystal Pulling length: 2,700 mm

  2. Maximum poly length: 2,000 mm

  3. Crystal diameter: Up to 200 mm

  4. Pulling speed: 0 – 30 mm/min

  5. Rotation speed: 0 – 30 rpm

  6. Size: 3,800 x 4,050 x 11,550mm

  7. Footprint(total): 5,000 x 6,000 mm

  8. Weight(total): approx. 14,000 Kg

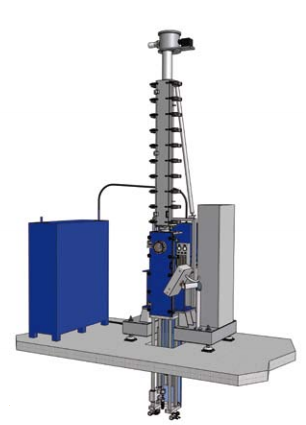

SR 110 (Slim Rod Puller) is designed to produce silicon core rods in Siemens CVD reactors. The diameter of the rods is about 7-10mm, and the height can reach up to 2.5 meters.

The SR 110 is a very efficient model because it can produce two silicon core rods at the same time in one manufacturing process. Compared with the CZ method and cutting with a band saw or wire saw, it can avoid material loss. In addition, the machine is designed after thorough consideration, so it is very easy to use, and after the production of a set of silicon core rods, the next set can be produced immediately. This is due to the special valves in the reaction chamber and the upper receiving chamber. design. Depending on the diameter of the raw material rod and the length of the required silicon core rod, one raw material rod can produce 12 to 50 silicon core rods.

Technical Data

  1. The diameter of source rod: 25-50 mm

  2. The length of source rod: max. 1000 mm

  3. The quantity of source rod: 2

  4. The diameter of slim rod: 7-10 mm

  5. The deviation of the slim rod diameter: ±0.1 mm

  6. The length of slim rod: max. 2500 mm

  7. The quantity of slim rod: 2 (at the same time)

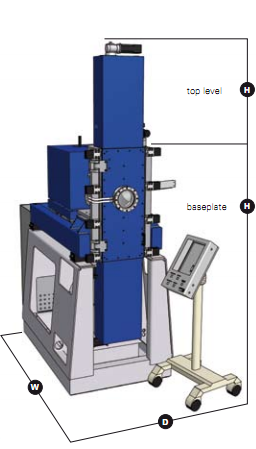

FZ-14M was born for testing needs. The principle of operation is to use the zone melting method to convert miniature polycrystalline silicon rods into single crystal silicon, and then put them into appropriate instruments to evaluate the quality and purity of the polycrystalline silicon materials. During the zone melting process, the polycrystalline rod is placed in an argon-filled environment to form a single crystal rod.

This single crystal rod will be analyzed by spectroscopic analysis for trace impurities such as boron, phosphorus, aluminum, arsenic, carbon and so on.

Features

  1. No oil (hydrocarbons) at any component

  2. Ultra low (no) natural pollution

  3. Ultimate component quality

  4. Low weight (aluminum frame)

  5. Very suitable for polysilicon analysis



Vertical Gradient Freeze

VGF Kronos is a high-end VGF (Vertical Gradient Freezing) system for mass production of low-dislocation compound semiconductors with a diameter of less than 6 inches. The working pressure ranges from 10-3 mbar to 40 bar, and the replaceable core module provides a high degree of application flexibility.

Technical Data

  1. Crucible Ø:   up to 4"/6"

  2. Max. Cylindrical length of crucible:   up to 450 mm

  3. Typ. Crystal length:   up to 350 mm

  4. Chamber Ø:   800 mm

  5. Chamber height:   975 mm

  6. Working pressure:   max. 40 bar



Please contact us , we will contact you as soon as possible to discuss detailed specifications.

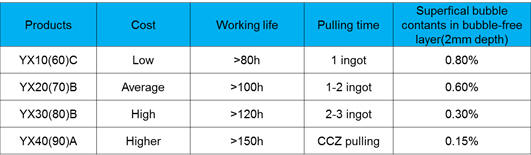

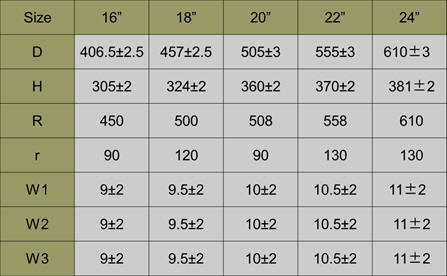

Quartz Crucible



Quartz Crucible

Quartz exists in the form of compound on the earth and is the second highet content of mineral only to feldspar, such as Silica, Silicate and so on.

Quartz, which is Silica, has the lowest coefficient of thermal expansion, high temperature resistance, high wear resistance, excellent chemical stability, electrical insulation, visible light penetration in ultraviolet(UV) and infrared(IR), high mechanical properties, etc.

Therefore, high-purity quartz materials are widely used in electronic technology, semiconductors, communications, electricity, light, solar energy, national defense, high-precision measuring instruments, laboratory physical and chemical equipment, nuclear energy, Nano-industry, etc.

* We can customize the specification.


Products Category

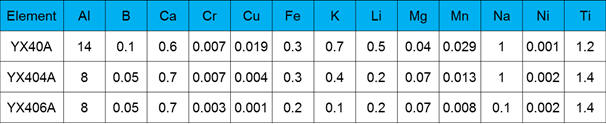

Material Purity

If you need further information, please contact us, we are happy to discuss with you !!



Automatic Equipment

Grinding Machine


The surface grinding machine uses two parallel grinding spindles for processing. The machine design can be loaded manually or by the arm for grinding and loading and fully automated integration with analysis system. The machine can handle silicon bricks with a size range of 125mm x 125mm to 156mm x 156mm and a length of 180mm to 1000mm.
 Features
  1. The grinding size can be automatically switched (125/156)
  2. Equipped with a manual loading area and a fully automatic loading area
  3. Equipped with pneumatic silicon brick fixture
  4. The monocrystalline silicon ingots and polycrystalline silicon bricks after the square can be polished without first cutting the head and tail.
  5. Automatic compensation and correction system for diamond layer consumption of grinding disc
  6. Detect and evaluate the quality data of working parts immediately after grinding
  7. Machine capacity: equivalent to 40,000 bricks/year (when the machine capacity is fully opened and uninterrupted; the processing size of silicon bricks is 156x156x350 mm)
  8. Grinding time: each silicon brick is ground for about 10min/350mm
Model specifications:
model 72/860.500- 125/156 72/860.1000- 125/156
Working part length 180mm-500mm 400mm-1000m

The chamfer grinding machine is suitable for the chamfer grinding of the single-poly crystals that have been squared and the surface is ground. The size of the silicon bricks is 125 x 125 mm and 156 x 156 mm. The machine is equipped with a pair of parallel grinding tool sets. Working parts with a length between 180 and 500mm can be processed directly.

  Features
 1. 45 ° angle chamfer grinding
 2. Equipped with a manual loading area and a fully automatic loading area
 3. Equipped with pneumatic clamp
 4. Automatic edge detection and grinding tool correction
 5. Automatic compensation and correction system for diamond layer consumption of grinding disc
 6. Detect and evaluate the quality data of working parts immediately after grinding
Please contact us , we will contact you as soon as possible to discuss detailed specifications.

The fillet grinder is equipped with a series of three grinding and milling spindles, in addition to a set of grinding tools for a wider grinding range. The loading area can be controlled manually or fully automated by an automatic control device. The machine can handle silicon bricks with a size ranging from 125mmx125mm to 210mmx210mm and a length ranging from 180mm to 1000mm.
  Features
  1. It can grind 45° degree chamfer to round chamfer
  2. Equipped with pneumatic silicon brick fixture
  3. Automatic edge detection and grinding tool correction
  4. Detect and evaluate the quality data of working parts immediately after grinding
  5. Automatic correction system for diamond layer of cutting disc
  6. Equipped with a manual loading area and a fully automatic loading area
Model specifications:
model 72/856.600 -156/210 72/856.600 -125/156 72/856.1000 -156/210 72/856.1000 -125/156
Silica brick size 156 mm x 156mm 210 mm x 210 mm 125mm x 125mm 156mm x 156mm 156 mm x 156mm 210 mm x 210 mm 125mm x 125mm 156mm x 156mm
Working part length 180mm-600mm 180mm-600mm 450mm-1000mm 450mm-1000mm

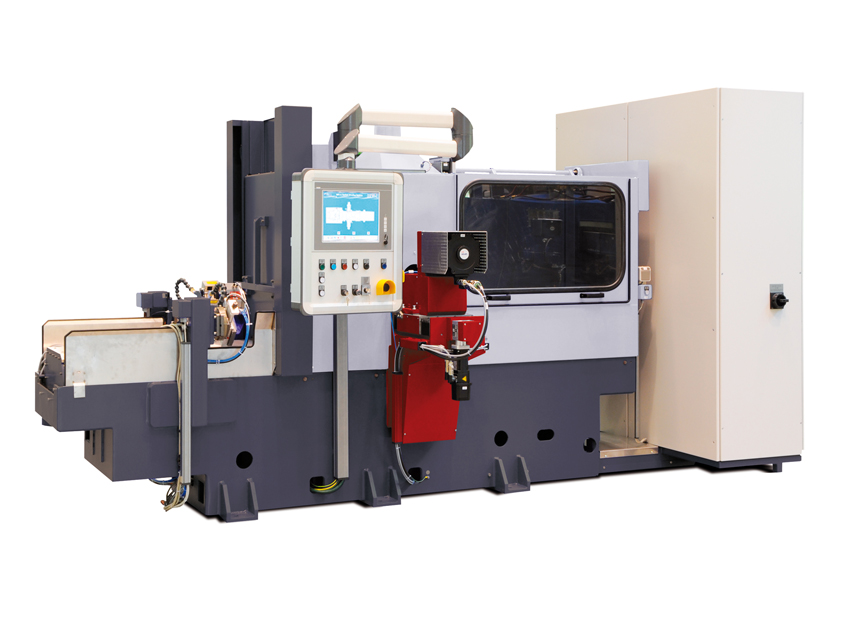

The surface grinding and chamfering compound machine combines surface grinding and chamfering into one compound machine at one time. It is suitable for polycrystalline silicon brick processing and can achieve the function of two machines in one.
 Features
  1. The grinding size can be switched according to product requirements (125/156)
  2. Different modes can be switched according to product requirements (surface grinding + chamfering, simple surface grinding, simple chamfering processing)
  3. Equipped with a manual loading area and a fully automatic loading area
  4. Equipped with pneumatic silicon brick fixture
  5. The monocrystalline silicon ingots and polycrystalline silicon bricks after the square can be polished without first cutting the head and tail.
  6. Automatic compensation and correction system for diamond layer consumption of grinding disc
  7. Detect and evaluate the quality data of working parts immediately after grinding
  8. Machine capacity: equivalent to 31,000 bricks/year (when the machine capacity is fully opened and uninterrupted; the processing size of silicon bricks is 156x156x350 mm)
  9. Grinding time: each silicon brick is ground for about 14min/350mm
Model specifications:
model 72/860.500- 125/156 72/860.1000- 125/156
Working part length 180mm-500mm 400mm-1000m

This machine is suitable for grinding silicon carbide ingots with 4"-12" chamfers. The length is 600 mm, with straight notches and flat grinding. The centering of the parts is done automatically.



Ingot size:

-Diameter: 4-12 inches

-Length: 30mm-600mm



Freiberg Instruments' XRD orientation measurement

  • Online inspection 4"-12"
  • Crystal orientation (111), (100), (110)
  • Flat edge/groove position measurement
  • The depth or width of the flat edge/groove
  • Diameter measurement of bare rods and round grinding rods
Grooved grinding wheel:
    • 1-2 different types of grinding wheels

    • Groove rough and fine grinding

Loading station:
    • Automatic loading and unloading

    • Scan the ingot identification code

Cutting Machine

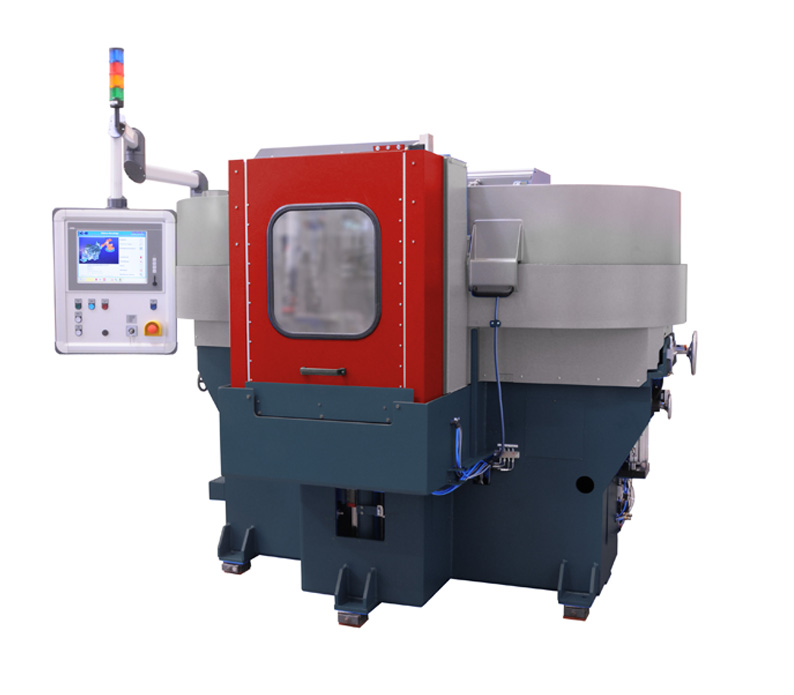

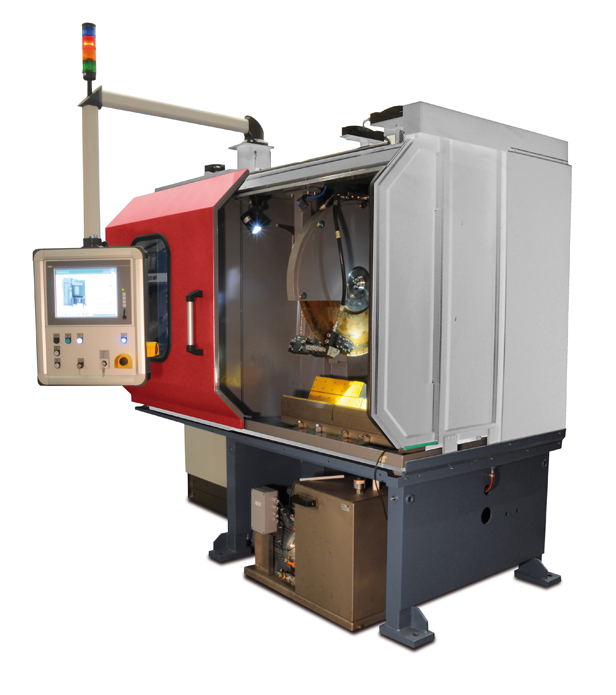

72/360 This machine is suitable for cutting squared multi and mono crystalline silicon work pieces. Also, it is used for Top and Tail cutting, recycling cuts and analysis wafer cutting. The suitable workpiece length is from 50 to 550 mm and the suitable diameter is from 120mm to 160mm. the analysis wafer thickness is less than 1.5 mm. To suit the needs of the customers, the machines can be equipped with the specially developed software ARPAT for the acquisition and analysis of your production information. These can be stored in a Microsoft SQL-database and can easily be supervised worldwide from your own computer.

Advantages
1. Equipped for manual and fully automatic loading
2. Low kerf-loss by thin blade guidance ≤ 1,7 mm
3. Low kerf loss: less than 1.3mm
4. Over 6 months of high wheel lifetime
5. Machine capacity: approx. 52.000 cuts/year(based 24 hour mass-production)
Please contact us , we will contact you as soon as possible to discuss detailed specifications.

The machine is suitable for cutting mono crystalline silicon work pieces length is 1200 to 3000 mm. and work piece diameter up to 230 mm, the each brick length is 200 to 1020 mm.

 Advantages
  1. Fully automatic load and unload, fixed position, top and tail cutting and analysis wafer cutting.
  2. Use the thin film blade and low kerf loss is less than 1.3 mm
  3. Longer band saw life time (approx. 12000 to 15000 cuts)
  4. Processing of different brick or ingot sizes (125 x 125, 156 x 156, 210 x 210 mm)
  5. Lower tool costs
Please contact us , we will contact you as soon as possible to discuss detailed specifications.

This machine is suitable for cutting single crystalline and multi crystalline silicon work pieces up to diameter format of max. 210 x 210 mm with a work piece length between 100 and 500 mm. Minimum segment length is 10 mm.

Advantages
 1. Pneumatic clamping of work piece and segment
 2. Equipped for fully automatic or manual loading
 3. Low kerf loss: less than 1.3mm
 4. Processing of different brick or ingot sizes (125 x 125, 156 x 156, 210 x 210 mm)
 5. Quick set-up time
 6. Longer band saw life time ( depend on brick and ingot size 156 x 156 approx. 850 cuts; 125 x 125 approx. 1300 cuts)
 7. low tool costs
Please contact us , we will contact you as soon as possible to discuss detailed specifications.

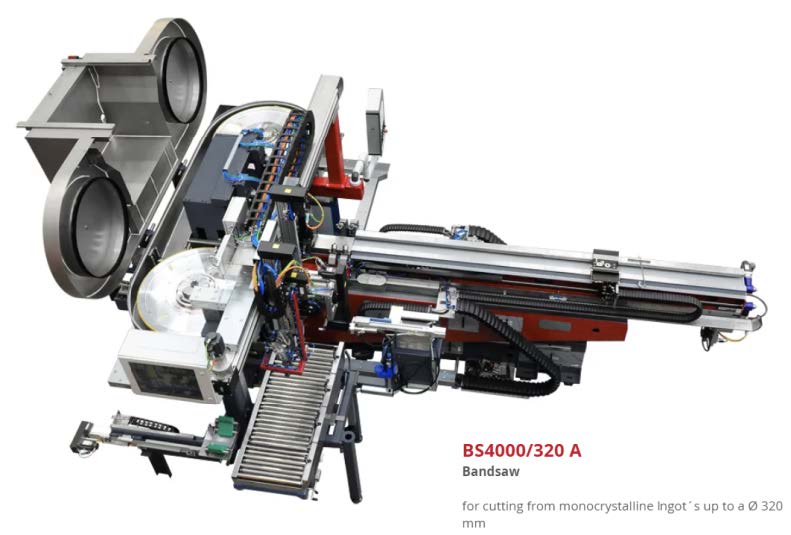

For cutting from monocrystalline Ingot´s up to a Ø 320 mm

 Advantages
  1. Test wafer thickness: 1 - 3 mm
  2. Length cylindrical part: 3500 mm (in depends on the customer specification)
  3. Single cuts possible; Diameter: 4 - 12“ ; Top/Tail cropping
  4. Infeed accuracy of the X-axis block and disc infeed < 0.01 mm

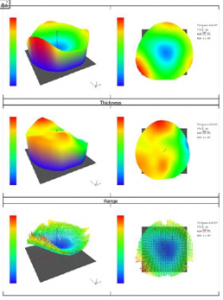

  5. latness (Bow, Warp, Shape, Linear Shape Range) <= 70 μm
  6. Squarness of the test discs: < 0,1 mm ; Cutting force (pressure sensor monitoring) limit value: adjustable
  7. Belt tension limit value: ± 1.5 ; Belt speed limit value: ± 2%
Please contact us , we will contact you as soon as possible to discuss detailed specifications.

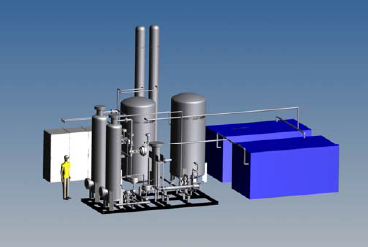

Argon Recycling System

In order to save huge amount of argon when producing mono ingots, ReiCat develops and produces systems for the most efficient application of valuable technical gases. Our customers will no longer need to spend lots of money buying argon.

Advantages

  1. Reduction of argon consumption of more than 80%

  2. Fully automatic operation with remote control

  3. Short amortization period

  4. Guaranteed gas quality higher than 99.999%

  5. Active and sustainable environment protection

  6. 3 different process capabilities: 100m3/hr, 200m3/hr, 400m3/hr

  7. Other technical gases recycling system is also available

Please contact us , we will contact you as soon as possible to discuss detailed specifications.

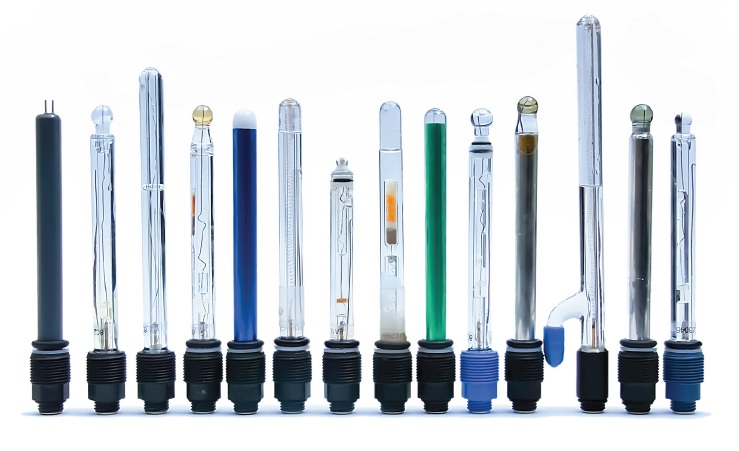

Sensors



In our proprietary glass blowing and mechanical engineering department, we manufacture a wide range of sensors for the measurement of pH value, redox potential, conductivity and temperature. Our sensors are available in glass and plastic design. With great technical skills, each individual sensor will be manually manufactured by us. Besides proven standard products, we offer custom-made products to your exact specifications. For best results, the construction and the selection of materials are made in close cooperation with our customer.

Special sensor cables, special plug and screw-type connections, fixtures and level indicators of different types as well as other accessories round off our wide range of modern sensors.

For more details, please contact us. We are willing to help!

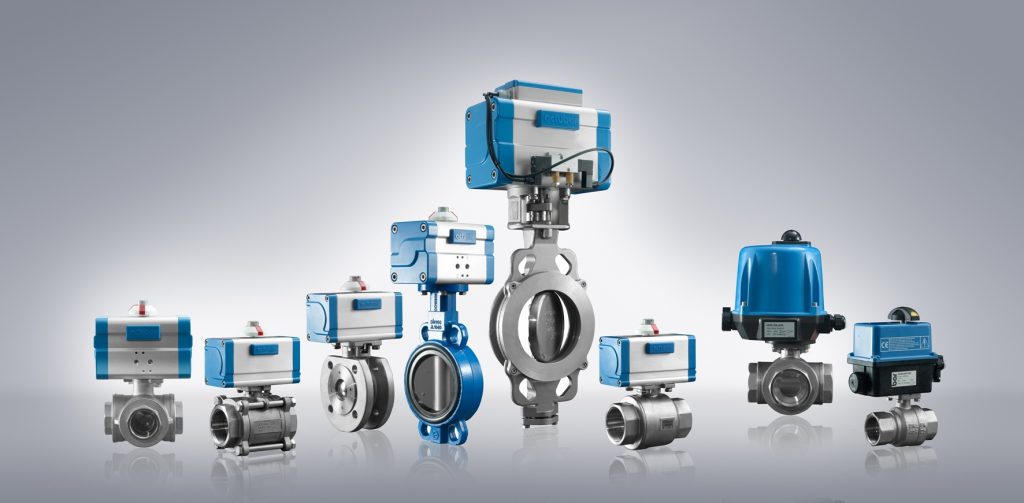

Actuators, Valves and Accessories

The diversity of process technology and the thereby processed mediums is reflected in an even larger diversity of products which are deployed in plant construction. The arrangement of products presented here is only a small representative selection from our total range of products. This range of products includes pneumatic and electric actuators, positioners, limit switch boxes, pressure boosters or reducers as well as solenoid valves. All products are available in groups or as singles, fitted out with manual or automatic valves or even in special combinations whereby the perfect solution will be found for each and every actuator interface. We can provide our customers with consultation and layout suggestions. In addition, we can provide training for the employees as well as supporting services according to your demand. Please find out a brief introduction below of our products:

Valves

Industrial valves are “control points“ in process technology. Beside the classical “ON/OFF“ control system, the exact dosage or another direction of flow is necessary in order to control the process in hand. The type of medium flowing, temperature and ambient conditions dictate the selection of a suitable valve. When the right selection has been made, a pneumatic or electric actuator rounds-off the valve to the effect that automation is carried through to completion. The advantage of automation lies in the fact that the process in the plant can be controlled more exactly and is in turn safer.

Actuators

Pneumatic actuators and electric actuators in plant construction apply to ON/OFF – as well as to positioning applications. They can be deployed in almost all types of pipework plant.Some examples include chemical products, foodstuffs, paper production as well as water and wastewater treatment. Our products have proved their worth over decades. Special applications are covered by our stainless steel actuators or special coatings.

Electric actuator

The electric actuator series have a wider range of services, and can be equipped with PLC, Internet, Bluetooth, Wi-Fi, etc., and can support mobile phone or tablet.

Besides, the DV series has been certified by DNV GL, and is suitable for ships, offshore units and light craft. In 2020, it won the French navy tug supply contract.

Accessories

This is the most comprehensive product group, finally enabling a custom-designed layout and control of automatic valves. The driving actuator for the valve has interfaces for positioner, limit switch boxes and override gear boxes as well as additional interfaces for solenoid valve and pressure booster. Throttles and silencers are equally useful for smooth and safe plant operation. Our sales staff will gladly listen to you and discuss the way towards a solution.Please contact us for more details.

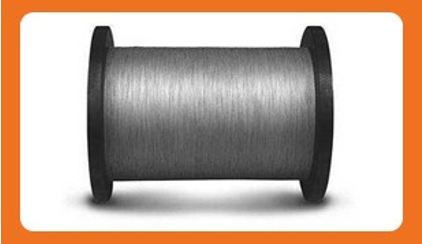

Sawing Wire

Sawing Wire is a kind of fine high-carbon steel wire of high strength, high hardness, and high wear resistance. It is used as the carrier for multi-wire sawing to cut super-hard crystalline materials, such as silicon, gallium arsenide, Indium phosphide, silicon carbide and crystal, etc.
Product Advantages

  1. Less kerf loss

  2. Higher efficiency, capacity and precision

  3. Lower processing cost



Diamond Wire is a special high strength steel wire with single layer diamond abrasives fixed on its surface. According to the diamond bonding process, it can be divided into Resin bonded diamond Wire(RW),the Electroplated diamond Wire(EW) and Diamond Cable( DC).It has strong cutting capability for sawing large size, super hard and brittle crystalline materials, such as monocrystalline/polycrystalline silicon ,silicon carbide, sapphire, crystal and other precious crystals. Compared with free abrasive sawing wire. The advantages of diamond wire is lower overall processing costs, improvement of processing quality and reduction of environmental influence etc.


Product Advantages

  1. Shorter cutting time, better total thickness variation

  2. Slurry-Free and environment-friendly process

  3. Reducing the total cost of ownership



Copyright © 2020  Latent Technologies Inc. | 磊拓科技股份有限公司

Address: 3rd Floor, No. 86-7, Yiwen 1st Street, Taoyuan District, Taoyuan City, TAIWAN

TEL:  + 886 3-3589738

Scroll to Top
